Specification

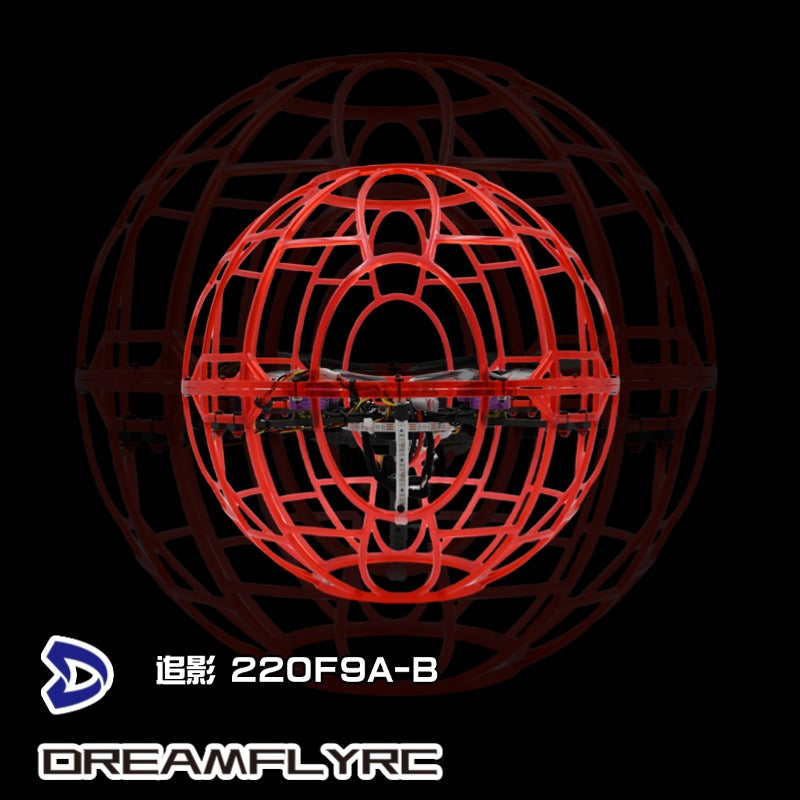

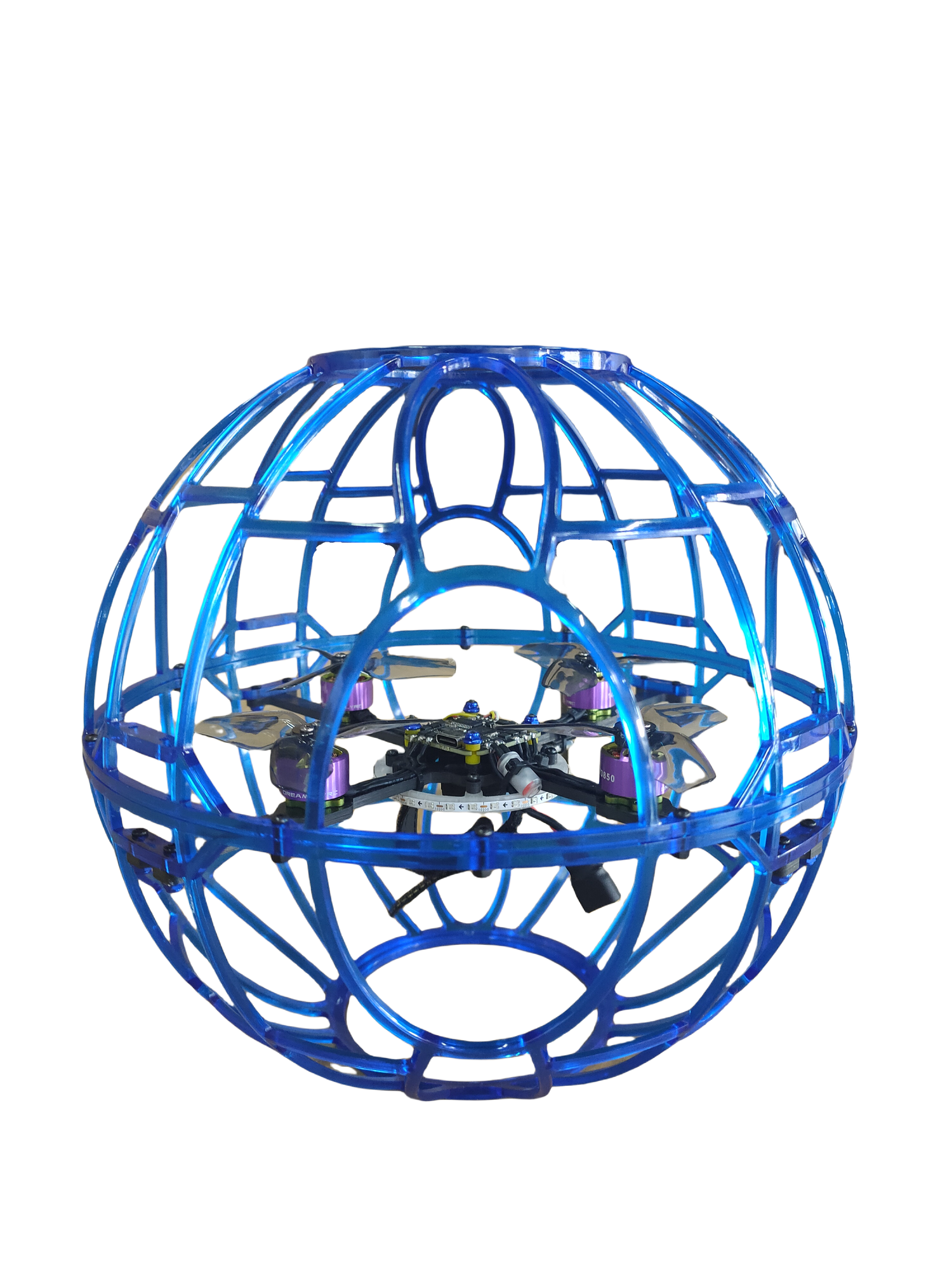

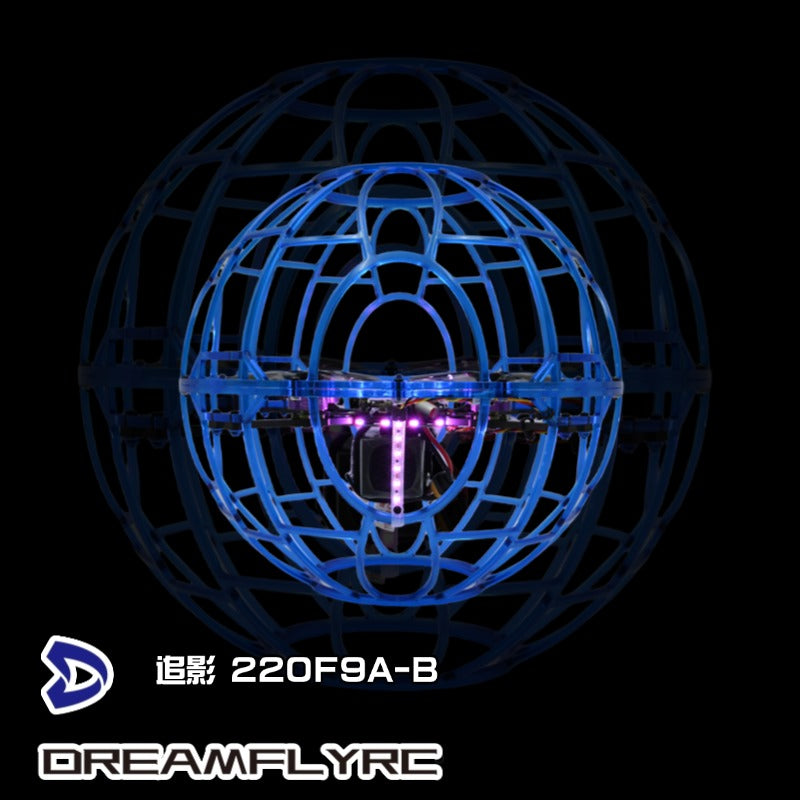

- Ball diameter: 220mm
- FC+ESC: G473-AIO-35A
- Motor: 1406
- Propeller: 76MM-3
- Empty weight: 198g
- Takeoff weight: 267g (including 4s 850mah battery)
- LED light control
- Flight control supports ELRS

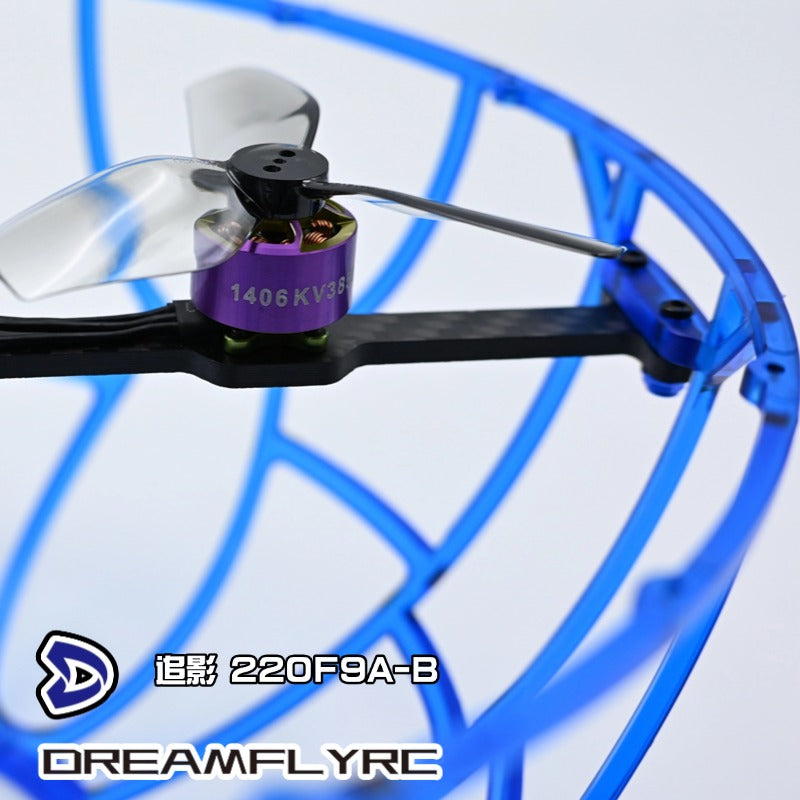

Brushless Motor 1406
- Motor KV (rpm/V): 1550KV, 2550KV
- Weight: 15.17g for 1pc
- Color: blue-black
- Shaft: φ1.5mm
- Shaft length: 3.8mm
- Shaft diameter: 1.5mm
- Hole distance: 12mm
- Motor Mount Holes: M2
- Input Voltage: 2550KV for 4S LIPO, 1550KV for 6S LIPO
- Cables: 100mm long, 24AWG cables
- Dimensions: 21.6*21.6*19.7mm

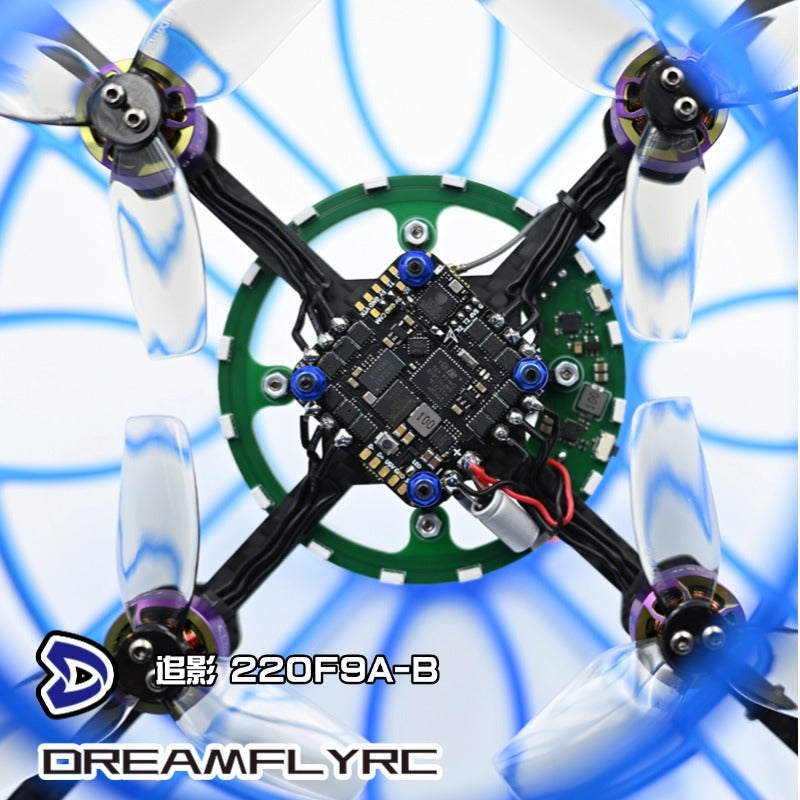

G473HD AIO 35A3S-4S
Mpu:STM32G473
IMU:ICM-42688
Interface:Type C
BPS:SPL06
OSD:7456E
Blackbox : 16M
UART:4
Firmware:betaflight
Input voltage: 3-6S (11.1V-26V)
Size:33*33mm
Weight:8.7g
