F722-система управления полетом
F722-система управления полетом
Не удалось загрузить сведения о доступности самовывоза
Введение в продукт:
Микроконтроллер:STM32F722
ИМУ:ICM42688
OSD:AT7456E
Барометр: DPS310
Черный ящик: 16 МБ
ВХОД: 11-30 В
5v-BEC:5V/2.5A
10В-BEC:10В/2А
UART:UART1,2,3,4,5,6
HD:UART1

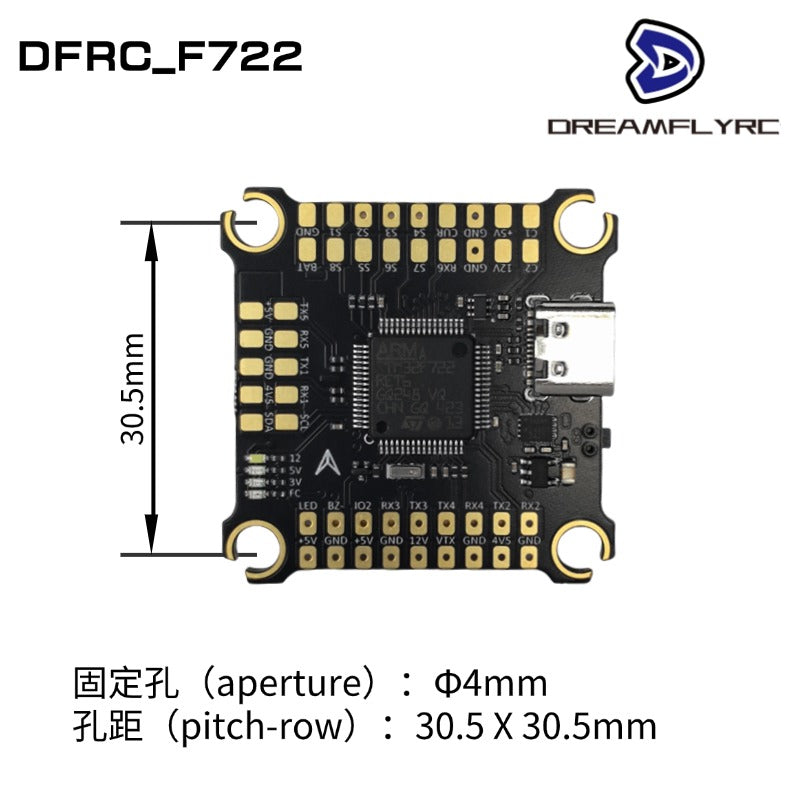

РАЗМЕР:36X41MM
ОТВЕРСТИЕ:30.5X30.5MM
Share
Speecification
-
F722
MPU: STM32F722
Gyro: ICM42688-P
BPS: SPL06
OSD: AT7456E
Blackbox : 16M Flash
Input voltage: 3-6S (11.1V-26V)
5V Output: 2A
12V Output: 12V/2.5A
DJl Socket: 6pin SH1.0
Motorsignals: 8 PWM signals, S1-4 supports 8pin direct plug-in
I2C: Support (Enable)
Dualcamera: cam1 interface is used by default, and USER1 can be used to switch cameras
PINIO: I01 is used to switch cameras, and I02 pads are reserved

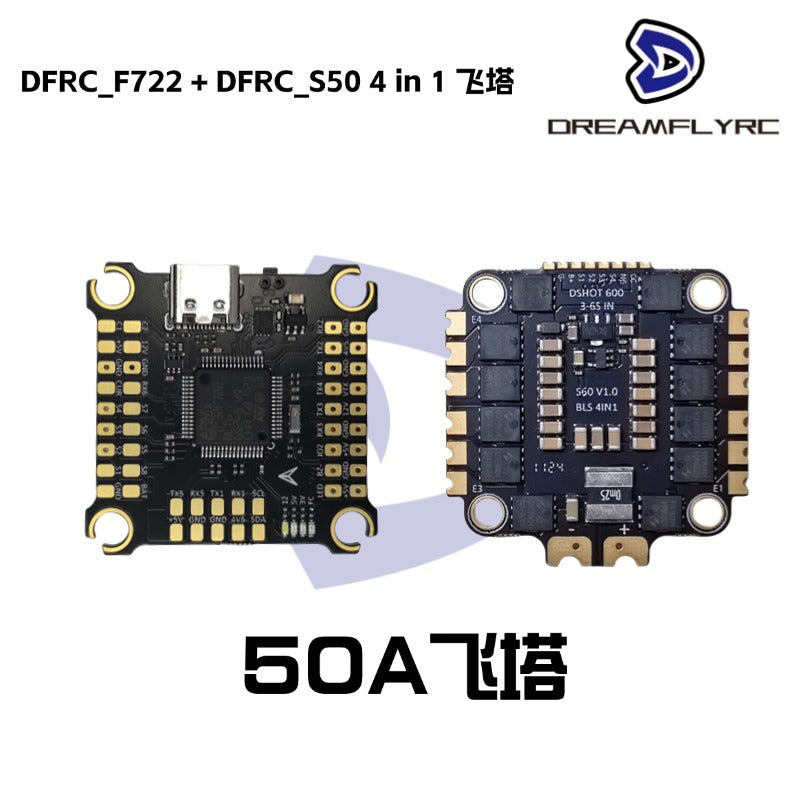

Firmware : BETAFLIGHT DREAMFLY F722 -

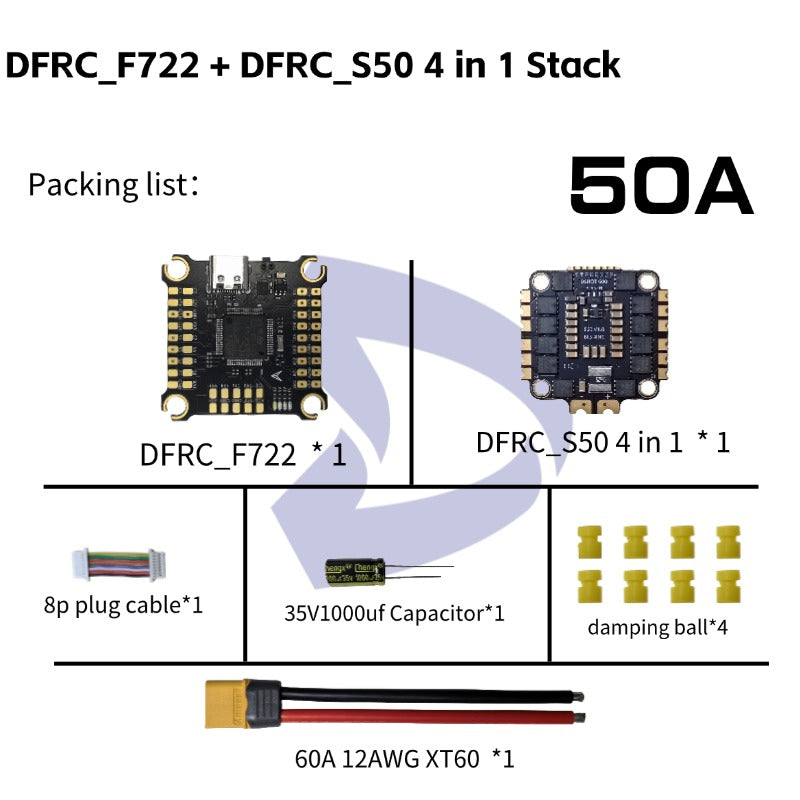

50A
Mpu:efm8bb21
Firmware:BLHeli S
Inputvoltage:3-6S(11.1-)
steady-state current:50A
peak current:60A(10S)
pitch-row:30.5mmX30.5mm
Aperture:Φ4mm -

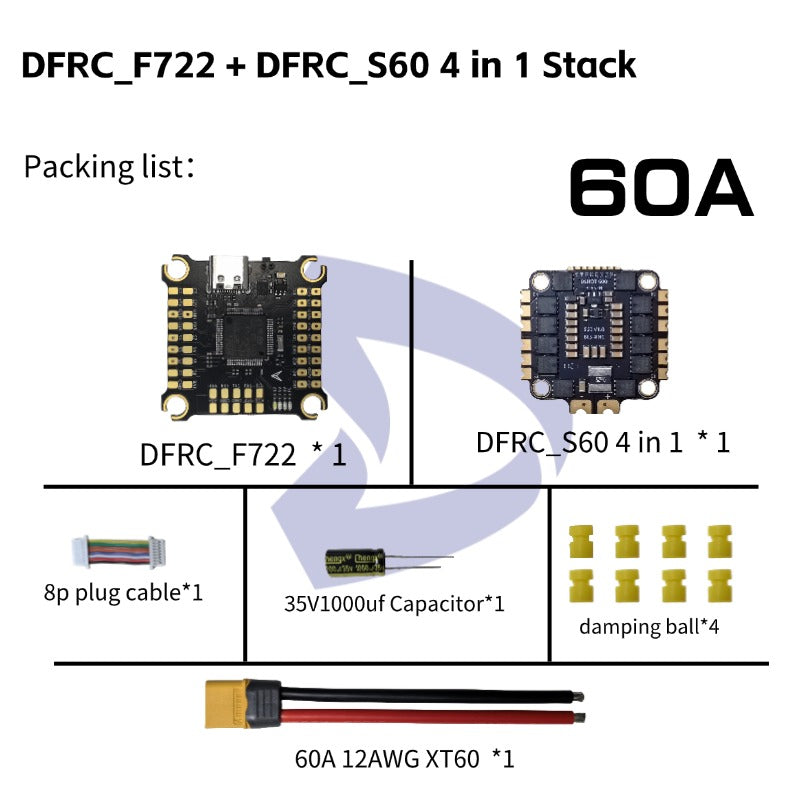

60A
Mpu:efm8bb21
Firmware:BLHeli S
Inputvoltage:3-6S(11.1-)
steady-state current:60A
peak current:65A(10S)
pitch-row:30.5mmX30.5mm
Aperture:Φ4mm
